AM20303 Hot-melt catheter punching machine
Power supply: AC 220V, 10A, 50HZ
Ambient temperature: -20℃ ＋50℃
Working pressure: 0.5-0.8Mpa
Heating power: ≤360w
Adjustment accuracy: 0.02mm
Tool clamping: three-jaw chuck
Number of tools: 3
Tool range: 0.1-0.3mm
Tool adjustment angle: three-way 90 degree free adjustment
Adjustment stroke: X axis: ±5mm, Y axis: ±5mm, Z axis: ±5mm
Applicable materials: PVC、PU、HDPE、LDPE、PP、PEBAX, etc.
Weight: 22KG
Machine size: 860*400*280mm (width*length*height)
×Enter your message
Product Description

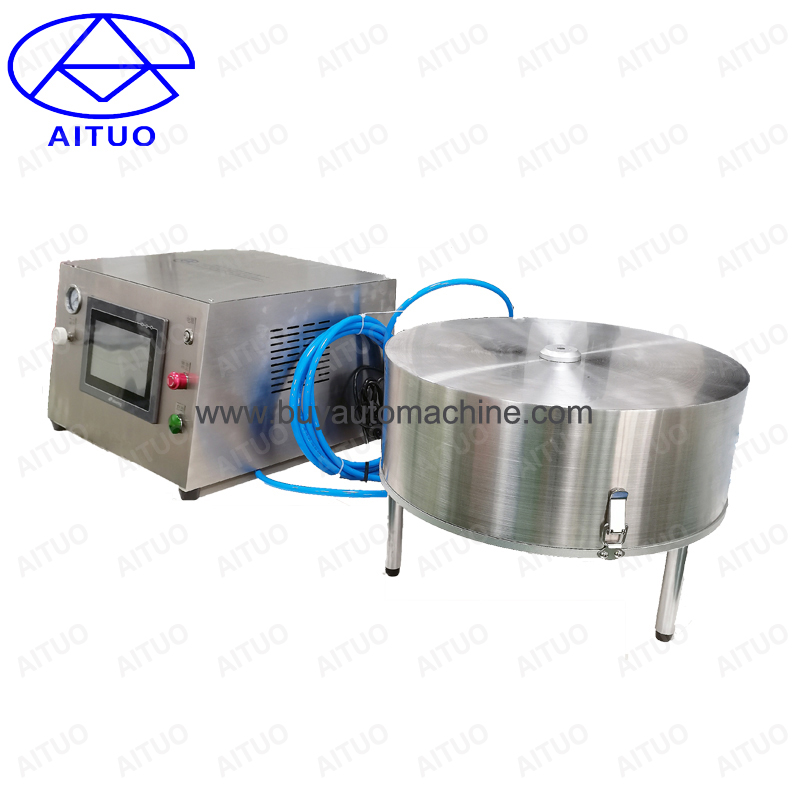

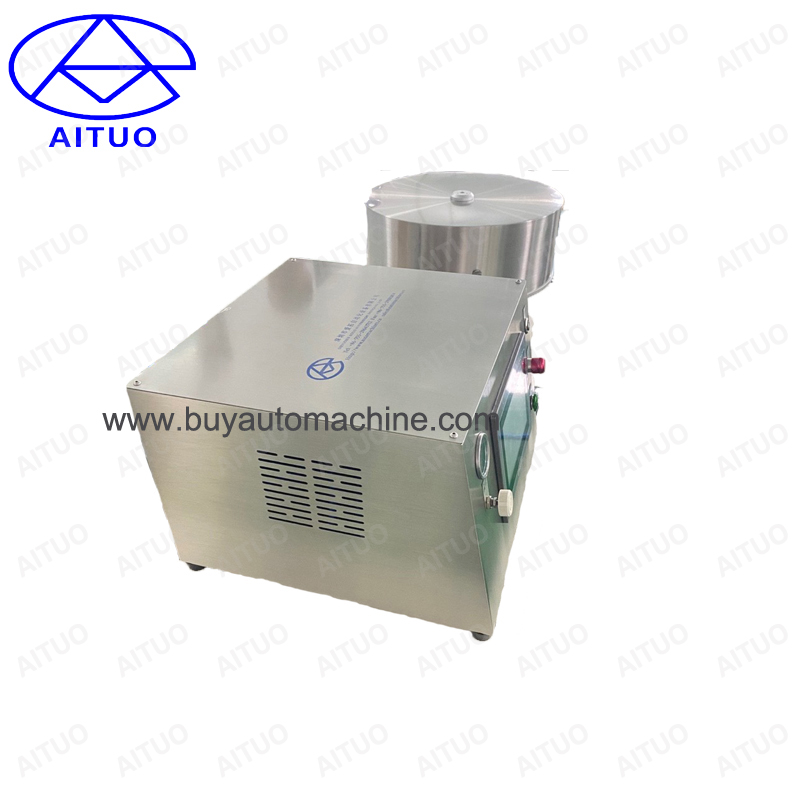

AM20303 Hot-melt catheter punching machine
Equipment introduction

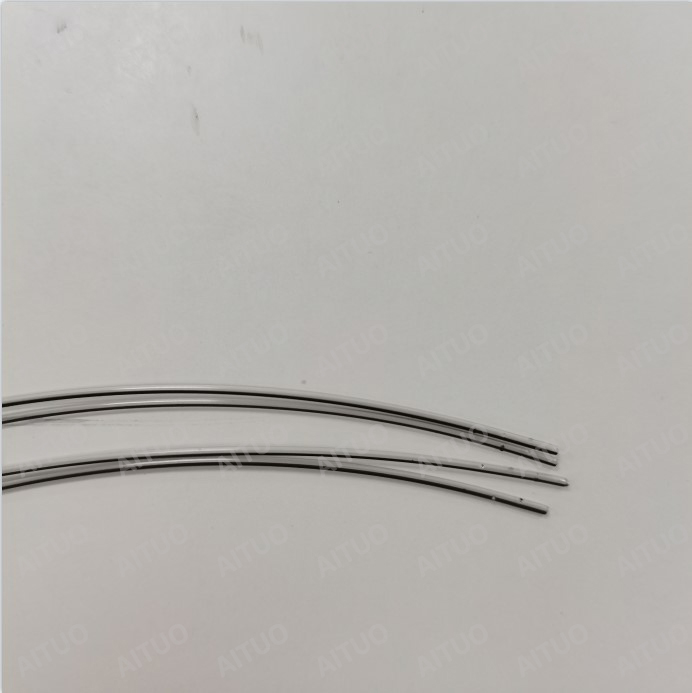

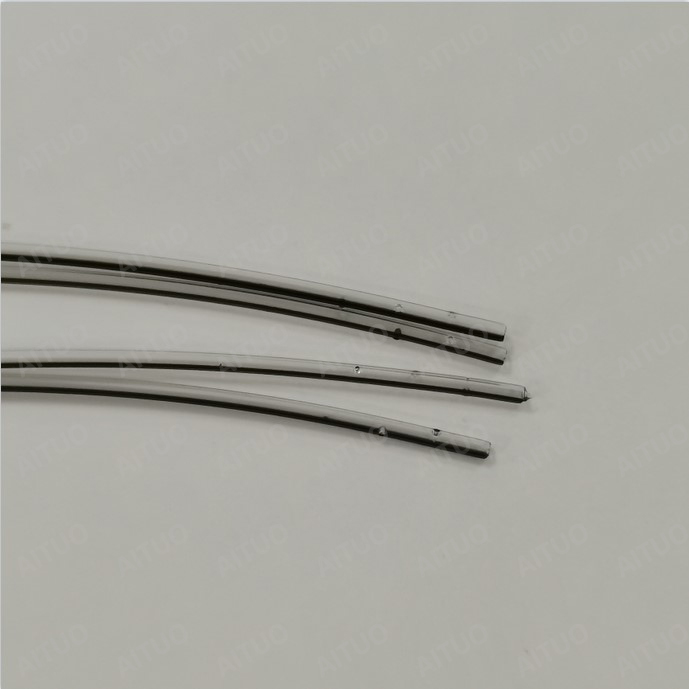

This hot-melt punching machine is specially used for punching medical plastic catheter’s hole. It works by heating the tool to drill hot melt holes in the catheter.
Equipment characteristics
1- Fast air cooling.
2- Fast changing molds and cutting tools.
3- Simple operation, one-key start.
4- High-frequency heating, controlled by PLC,touch screen with man-machine visual interface operation
5- High-precision (0.02mm process) three-dimensional adjustment of the punching position.
