AM701-1.5T medical tube connectors Vertical Injection Moulding Machine

  • Model:AM701-1.5T
  • Brand: Aituo
  • Delivery:10~15 dyas
  • Warranty:1 year

INQUIRY NOW

×Enter your message





    Product Description

    Introduction:

    1.AM701-1.5T vertical injection moulding machine lock mold/vertical to cast,IS suitable the common electric appliance plug,the electronic components and so on small inlays to take shape.

    2.Two(three sections)the temperature control/projects the speed/back pressure and so on not to have the section adjustment,suits components of the precise revertex to take shape.

    3.AM701-1.5T injection moulding machine fast lock mold/low pressure idling speed closes the mold,locks the mold exceptionally when then Automatic tight open the mold.This special safe design,and so on can get up the protective function to the mold.

    4.The stamping die fixed/op die activity type,to takes shape inlays to have the very good localization in the mold.The end product has the fluid capping to leave the installment,the end product takes out extremely facilitates easily.

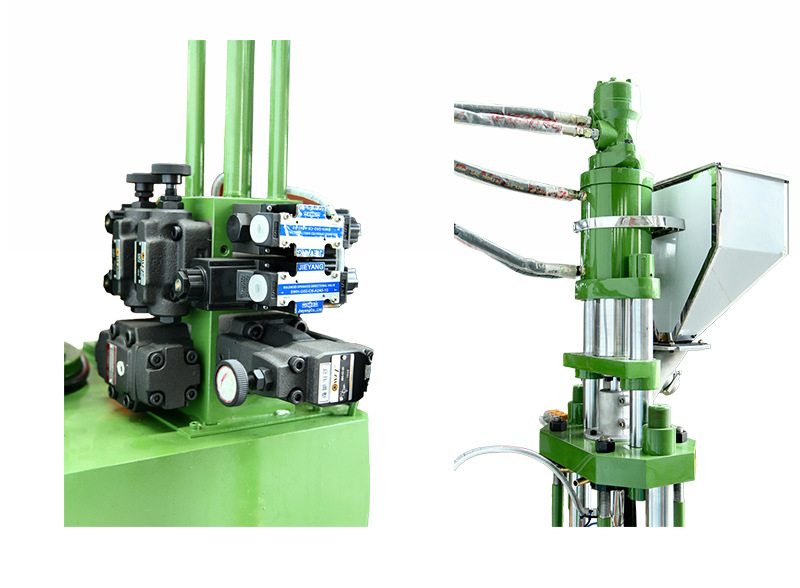

    5.AM701-1.5T injection moulding machine electrically controlled fitting/hydraulic pressure fitting uses the domestically produced name brand The precise durable revolution noise is low.Locks mold strength 15TON – 55TON,has PLC to program the Electrically controlled computer single to press the control or the computer entire program the electrically controlled computer single to press the control or the computer entire proportion(ratio presses ratio to flow )controls three kinds,may supply the customer choice.

    6.May supplement Sand up mould IS with double slippery mold 2S.Lets the operator more convenient production efficiency Gauguin security.

    Specification:

    Model AM701-1.5T
    Screw diameter (mm) ¢22 / ¢26
    (PS)Max Injection weight (g) 50 / 58
    (PS)Safe Shot Weight (oz) 1.7 / 2.0
    Screw stroke (mm) 90
    Screw speed rotation (r.p.m.) 0-150
    Nozzle contact force (tf) 2.4
    Clamping force (tons) 15
    Opening stroke (mm) 200
    Mold space (mm) 450×280
    Min.thickness of mold (mm) 100/25
    Hydraulic ejector force (tons) 1.3
    Injector stroke (mm) 35
    Injection pressure (kg/cm2) 1183 / 1019
    Oil tank capacity (L) 90
    Drive motor (kw) 4.2
    Dimensions (LxWxH)M 1.35 x 0.92 x 2.06
    Weight (kg) 600
