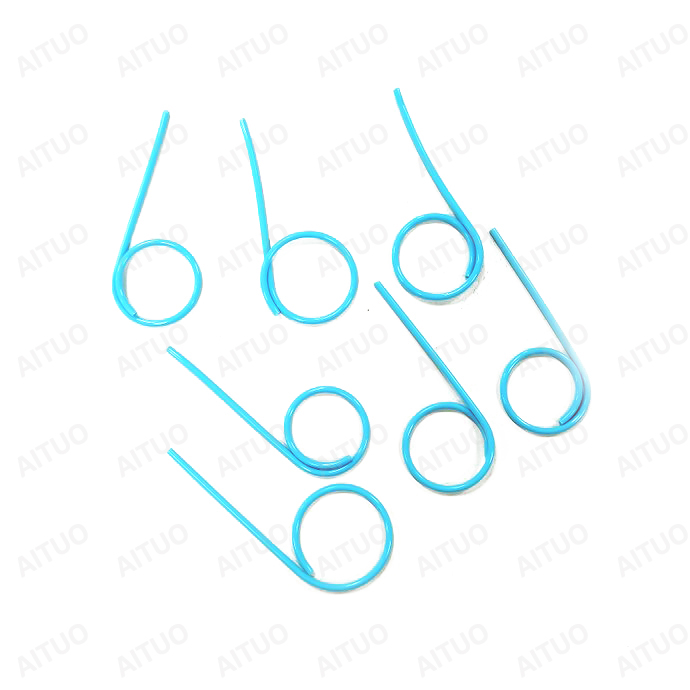

AM20601 pigtail catheter urethral stent thermo-forming machine
Power supply: AC 220V, 16A, 50HZ
Ambient temperature: -20℃ ＋50℃
Working pressure: 0.5-0.8 Mpa
Heating power: ≤2000 w
Temperature range: 50-180 degrees
Fixture pressing: 10-50 N
Pipe diameter processing range: 4F-14F
Mold size: 380*250 mm
Applicable materials: PVC, PU, HDPE, LDPE, PP, PEBAX, etc.
Weight: 30 KG
Machine size: 860*400*300 mm (width*length*height)
×Enter your message
Product Description

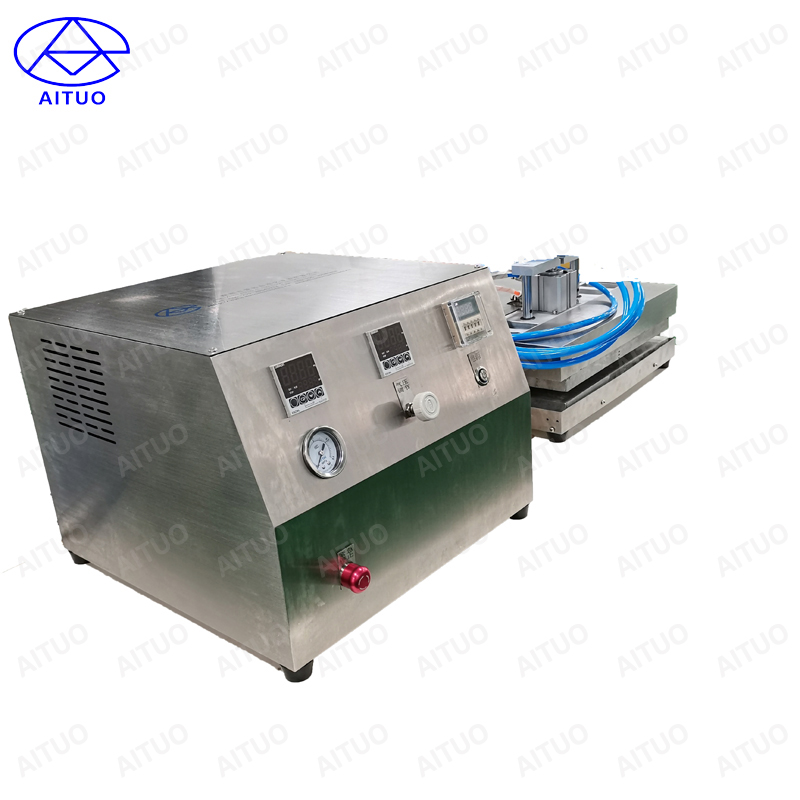

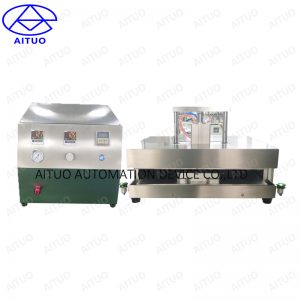

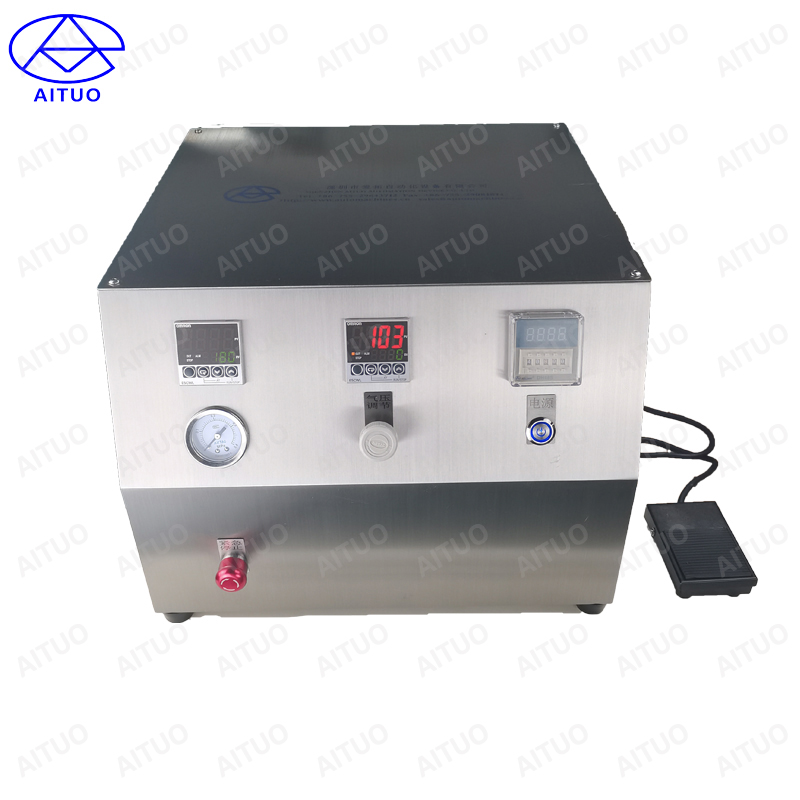

AM20601 pigtail catheter thermo-forming machine
The medical catheter hot forming machine produced by our company Aituo automation is dedicated to the forming of medical plastic catheters. The principle of the machine is to conduct heat to the mold through the heating plate to hot-forming the catheter.
Equipment characteristics
1- Drawer type quick mold change.
2- Plate type heating plate, the upper and lower plates are heated uniformly at the same time.
3- The time and heating temperature are controllable, and a variety of modes are available.
4- Temperature feedback control system controls the temperature accurately.
5- Fool-style operation, one-key start.
6- Fan heat dissipation, ensure that the temperature of the sheet metal cover does not exceed 42 degrees Celsius.
