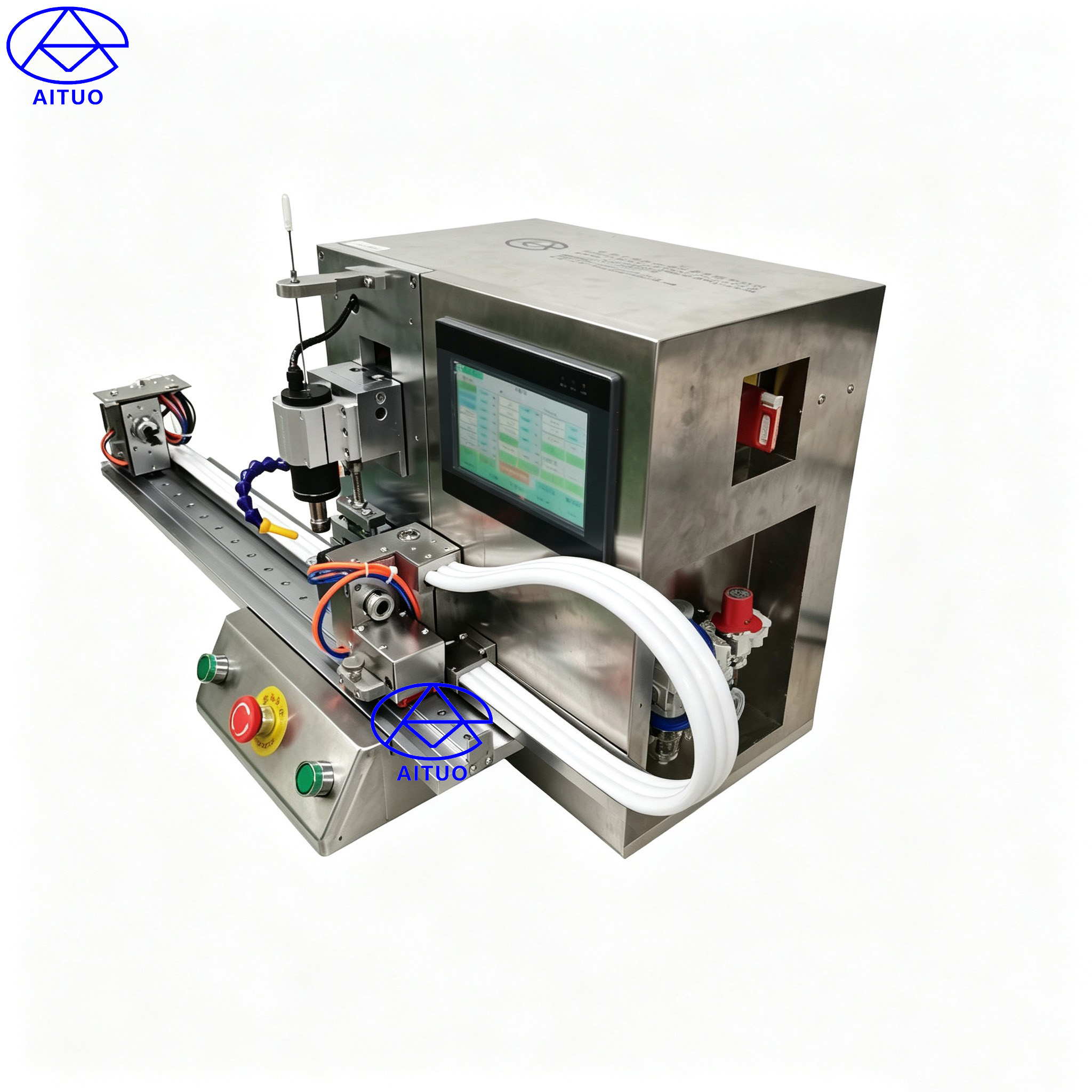

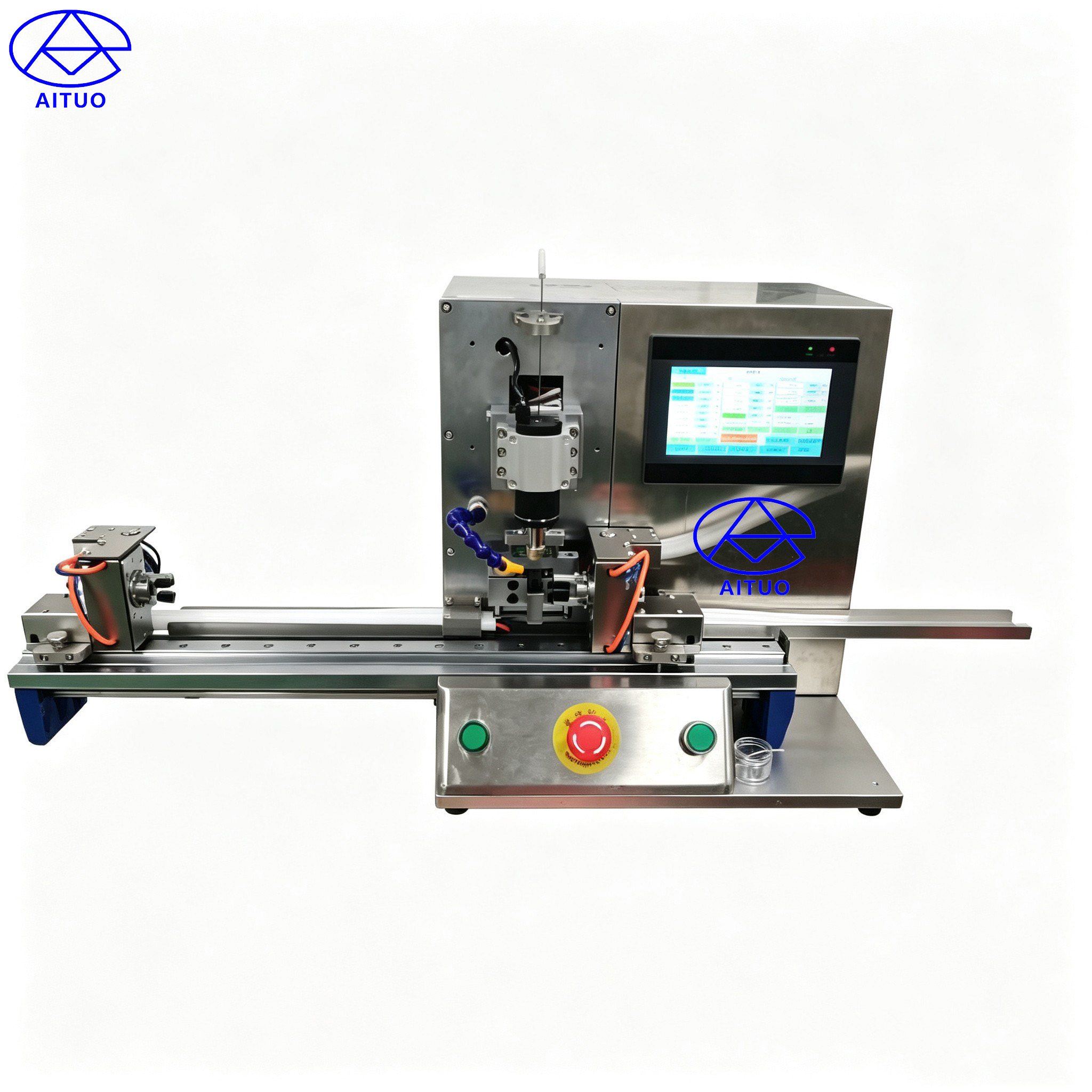

This equipment is a single-axis CNC punching machine that adopts manual loading and performs catheter hole punching at any angle and size. It is equipped with a reset ejection mechanism that ejects the waste material from the cutter during reset.
| Machine Name |
AM202112 CNC Punching Machine |
| Voltage |
AC220V，50HZ |
| Machine Power |
400 W |
| Air Pressure |
0.4-0.8 Mpa |
| Machine Weight |
30 kg |
| Machine Dimensions |
L*W*H=480*400*390 mm |
| Max. Force |
1500 N |
| Fixture Y-Axis Stroke |
400 mm |
| Fixture Y-Axis Travel Speed |
0-500 mm/s |
| Punching Speed |
2 s / hole (subject to tube material) |
| Hole Diameter Range |
Cutting-edge diameter：>1mm |
| Tube Diameter Range |
1-10 mm |
| Data Storage Capacity |
20 sets |
| Compatible Materials |
PVC、TPU、HDPE、LDPE、PP、PA、PEBAX、FEP、PTFE e.g., |
