Equipment features

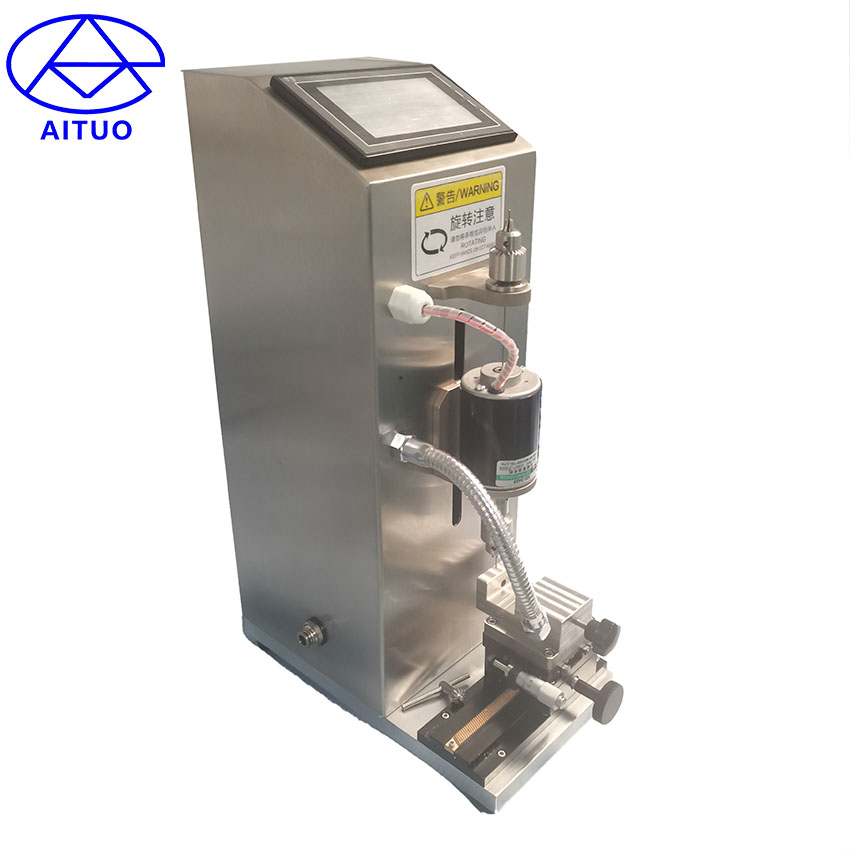

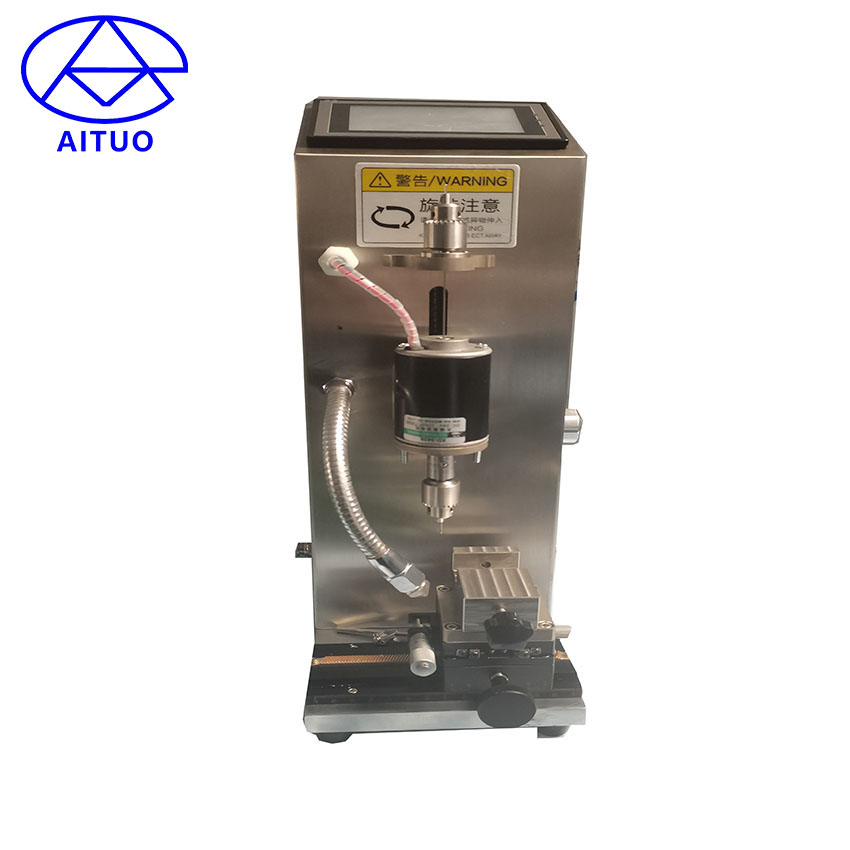

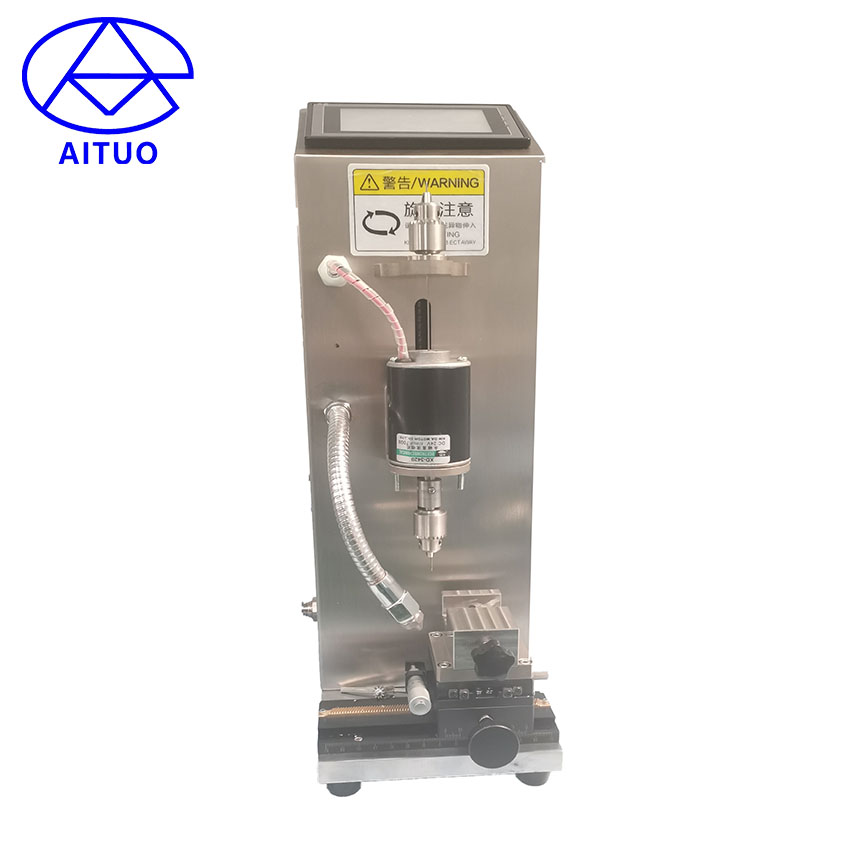

The equipment is a single-axis CNC drilling equipment, mainly used for precision medical plastic catheter drilling, using manual discharge, consisting of drilling feed axis (Z axis), rotary DC speed motor; the tool holder adopts medical grade stainless steel drill chuck, adaptable to Φ0.3-4MM hollow tool, equipped with reset ejector mechanism, the waste is ejected from the tool when reset.
Equipment parameters
Working power: AC220V 50Hz
Working air pressure: 0.4-0.8Mpa
Total power of equipment: 0.2KW
Punching speed: 600-1200 holes / H (according to the number of holes, production capacity may vary, this data is for reference only)
Equipment weight: 9.5KG
Equipment size: L150*W270*H448MM
Application
Hole processing range: 0.3-4MM
Tube diameter processing range;3F-16F
Applicable materials: PVC PU HDPE LDPE PP PA PEBAX FEP PS TPU PTEE
Application products: Plastic conduit and other plastic pipes
