AM105 high precision round hole drilling machine

Power supply: AC 220V 1P
Air source: 0.4-0.8Mpa
Power: 0.4KW
Ambient temperature:-20℃+50℃
Punching speed: 500-1500PCS/H (Depend on different materials)
Weight:30KGS
Dimension:450×350×452 mm(L×W×H)

INQUIRY NOW

×Enter your message





    Product Description

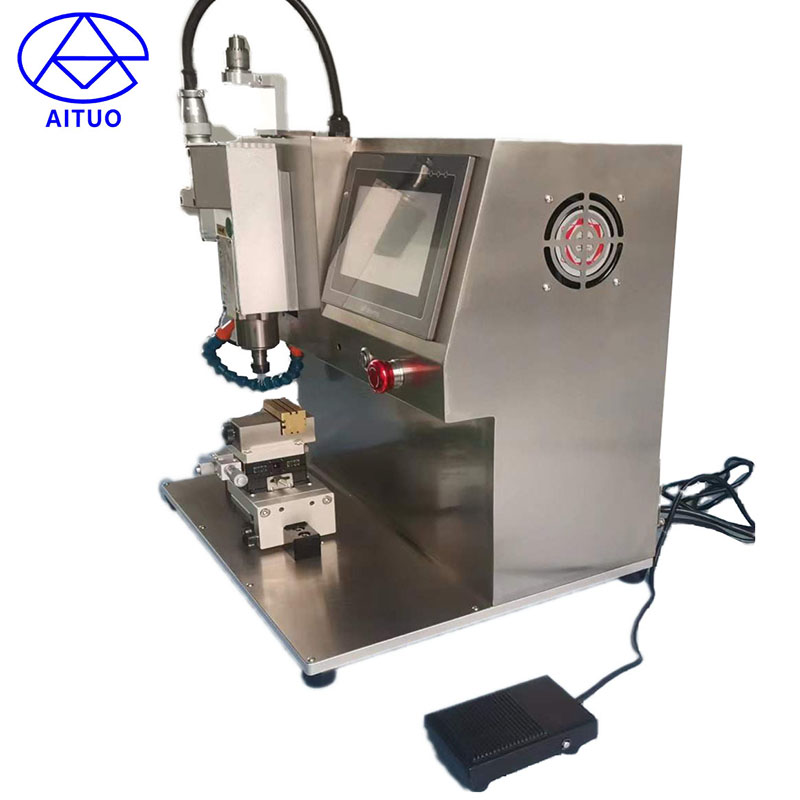

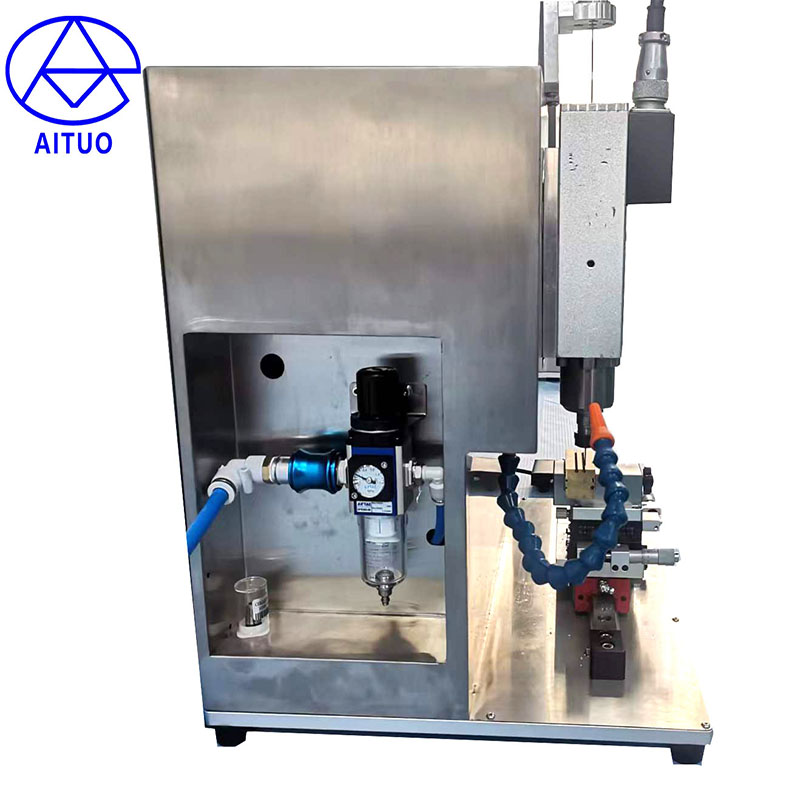

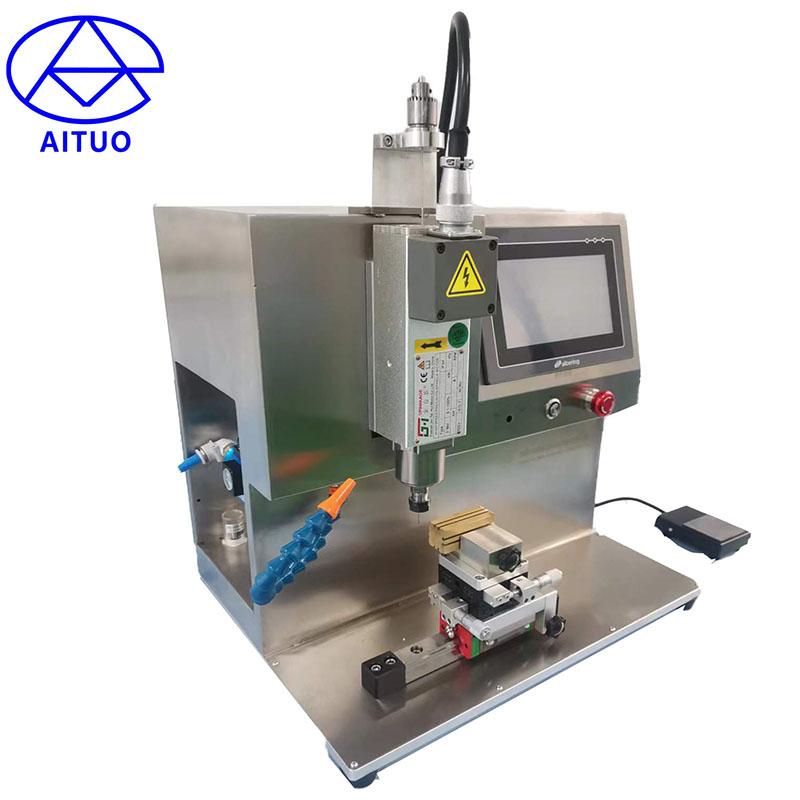

    AM105 high precision round hole drilling machine



    The equipment is mainly used for punching medical plastic catheter. It is composed of two stations, including a fine-tuning platform and a Z-axis assembly. The device has a compact structure. The drilling direction is fixed by the fixture to fix the position of the catheter wall, and the position can be adjusted flexibly. Equipped with a reset ejection structure, which ejects the scrap from the knife during reset. The punching direction and position can be adjusted flexibly.

    1、Applicable tube diameter 3F – 32F

    2、Applicable range of punching knife 0.4-8mm (need to replace the chuck inner core)

    3、Power of Spindle AC220V 370W

    4、Spindle speed 0-12000rpm Variable frequency speed control

    5、Z-axis stroke 50mm+1

    6、Z-axis reciprocating accuracy ±0.05mm

    7、Spindle runout ±0.02mm

    8、X-axis adjustable stroke 9.5mm

    9、Y-axis adjustable stroke 9.5mm

    10、Jig slide stroke 50mm

    11、Power of machines AC220V 400W

    12、Applicable air pressure 0.4-0.8Mpa

    13、Over size:L450*W350*H452

    14、Weight:30KG
